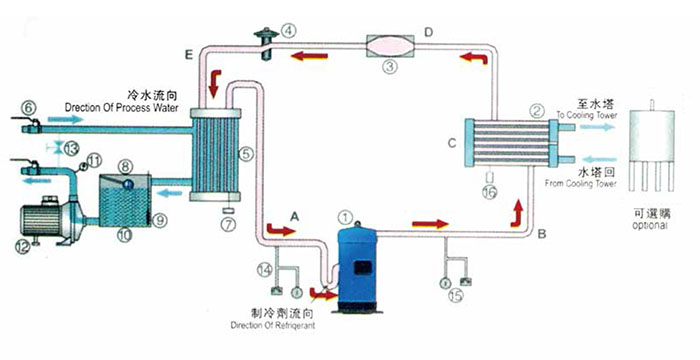

The TIC-W series of water-cooled water chillers use a single closed-loop designfor pressurised refrigerant. All models are equipped with compressor and motor verload protection, phase shortage and reversal alarms, anti-freeze thermostat,pressure gauges, etc. They feature excellent performance and a long lifespan.The series of working flow is based on the basic principle of heat exchange. It is applicable to the industry that requires flow of precisely controlled chilled water,and considered as indispensable equipment for modern industry.
冷却温度范围 5°C- 35C;
不锈钢保温水箱，防结冰保护装置 ;
制冷剂采用 R22,
制冷效果好 ;
冷冻回路采用高、低压开关控制 ;
压缩机及泵浦均有过载保护 ;
壳管式冷凝器，导热快，散热效果佳 ;
壳管式冷凝器及蒸发器导热及热交换快，散热及制冷效果好。
Cooling capacity from7C to 35C.
Stainless insulated water tank and anti -freeze thermostat.
R22 refrigerant used as standard for efficient cooling.
Refrigeration loop controlled by high and low pressure switches.
Compressor and pump overload relays.
Tube-in-shell condenser design for quick heat transfer and excellent heat radiation.
Tube-in-shell evaporator for excellent cooling
注：
1) 制冷能力是依据出水口温度 12C、环境温度 30C 下测得 ;
2) 此泵浦为内销及外销东南亚标配，客户可依需求换装中压泵浦 ( 用 P 表示 ; 例如 : TIC- -5W-P)，也可换装高压泵浦 ( 用 HP 表示 ; 例如 :
TIC 5W-HP );
3) 机器电压可按客户要求特殊订购。

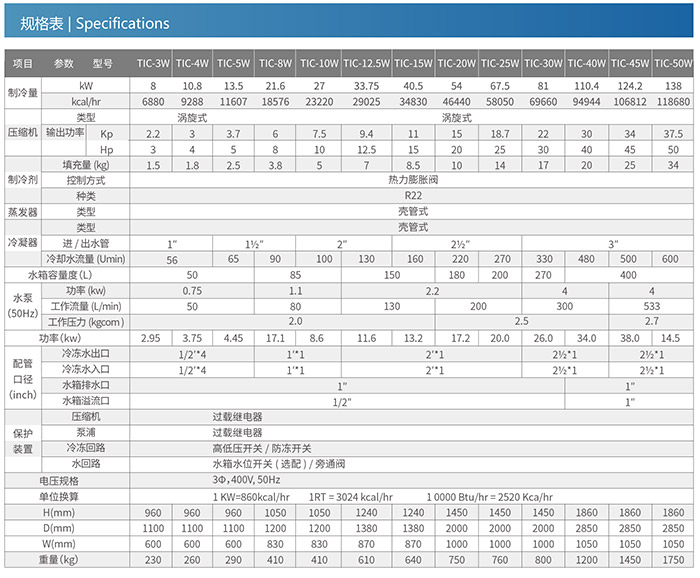

Note：
1)Refrigeration capacity is tested under the condition that cold water outlet temperature is at 12° and ambient temperature is at 30°.
2)This pump is used as standard either for domestic of Southeast Asia; medium(Model denotes" P”,such as TIC-5W-P) or high pressure pump(Model
denotes" HP”,such as TIC-5W-HP) are optional for installation on customer' s demands.
3)Demands on special voltage of power supply could be satisfied.
|
